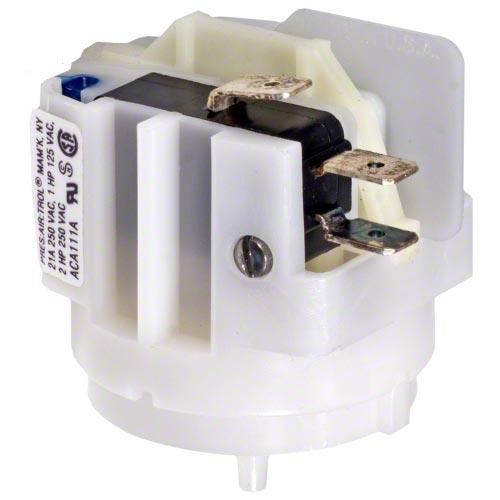

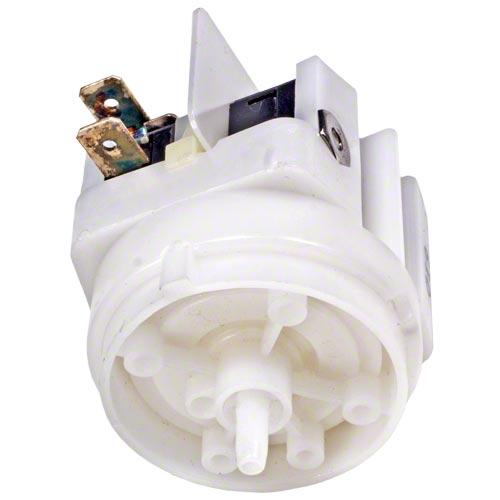

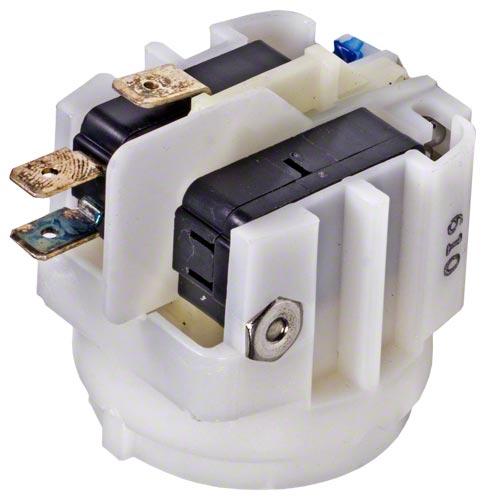

Air Switch SPDT ACA111A

Presair Air Switch ACA111A

Air Switch replaces the following Products:

• Hergair # 6861-ACO-U106

Specifications

• SPDT
• Latching
• 1/8" Bottom Center Spout
• Center Mount
• 21A 250 VAC, 1 HP 125 VAC
• 2 HP 250 VAC

Note:

• Mounts with # 4 self tapping screws.
• Single Pole Double Throw (SPDT) Switching Element - A SPDT switching element has one normally open, one common and one normally closed terminal. Three terminals mean that the switch can be wired with the circuit either normally open (N/O) or normally closed (N/C).
